For Immediate Sale / Make Offer 2014 Toyoda Multi-Pallet CNC Horizontal Machining Cell

December 31, 2023 5:00 PM

Inspection Details:

For Immediate Sale / Make Offer **THIS IS NOT AN AUCTION** Link Auctions Reserves the Right to Pull the Asset Down From the Sale if an Agreeable Offer is Reached - 2014 JTEKT (Toyoda) CNC Multi-Pallet Horizontal Machining Cell with (3) Toyoda FH450J Horizontal Machining Centers, All 2014 (1) Purchased in 2018 New with Zero Hours, Full 4th Axis, With Renishaw Tool Breakage Monitor (All Machines), Laser Tool Measurement System (All Machines), Toyoda Tipros FMS Pal-Tec Type FPA 60-Position Pallet

Log in to Register & Bid
Download Brochure
Contact Us

Further Details

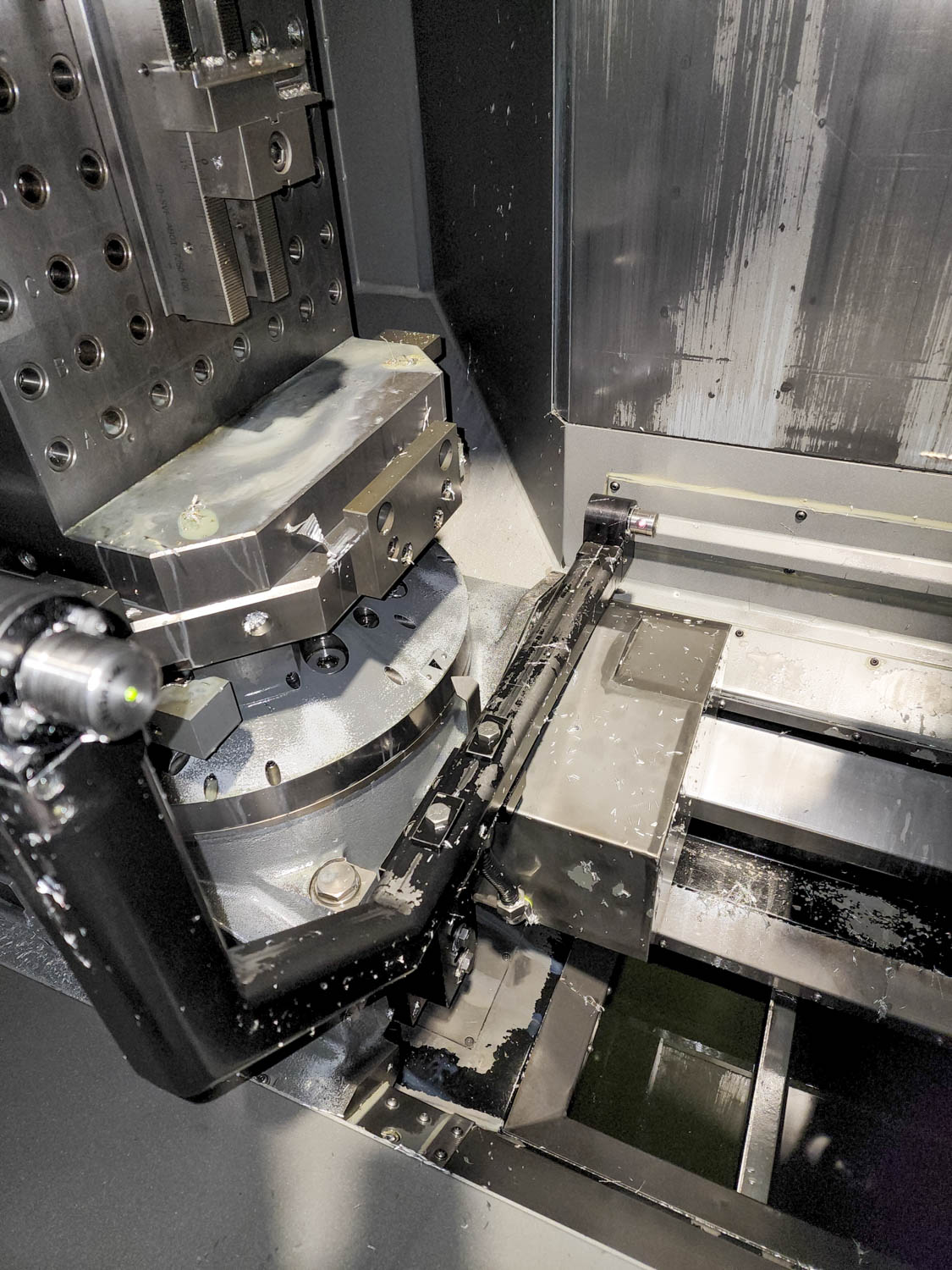

Toyoda CNC Multi-Pallet Horizontal Machining Cell with (3) 2014 Toyoda FH450J CNC Horizontal Machining Centers (1) Machine Purchased in 2018, Toyoda Tipros FMS Pal-Tec Type FPA 60-Station 2-Level Automated Pallet Changer with Load / Unload Station, PLC & PC Monitoring System
Machine Travels
X 23.62"
Y 23.62"
Z 24.80"
Pallet Size 17"x17"
Maximum Workpiece Swing 24.80
Maximum Workpiece Height 35.43"
Maximum Pallet Capacity 880 LBS
Spindle Speeds 1500 RPM
Spindle Taper CAT40
ATC (1) 300 Positon Matrix
  (2) 60 Position
Motor 30-HP


Complete with

  • Full 4-Axis
  • Fanuc Series 31i-Model A CNC Controls
  • Coolant Through Spindle
  • Renishaw Tool Breakage Monitor
  • Laser Tool Measurement System
  • Mistbuster Mist Collectors
  • Dakin Inverter Oil Coolers
  • Hydraulic Power Units
  • JPC Elevated Chip Conveyors
  • Toyoda Tipros FMS Pal-Tec Type FPA 60-Position Two Level Automated Pallet Changer (Machines Slide-In Type)  Single Load/Unload Station with PLC, & PC Monitoring System
  • (12) Pallets and Assorted Tombstones

Machine Hours:
Machine 1- Run Time 19,625 Hours, Cutting Time 14,262 Hours, Power On 53,146 Hours
Machine 2 - Run Time 19,643 Hours, Cutting Time 13,893 Hours, Power On 52,547 Hours
Machine 3 - Run Time 5,063 Hours, Cutting Time 3,453 Hours, Power On 30,225 Hours
